SYMBOL
DESCRIPTION

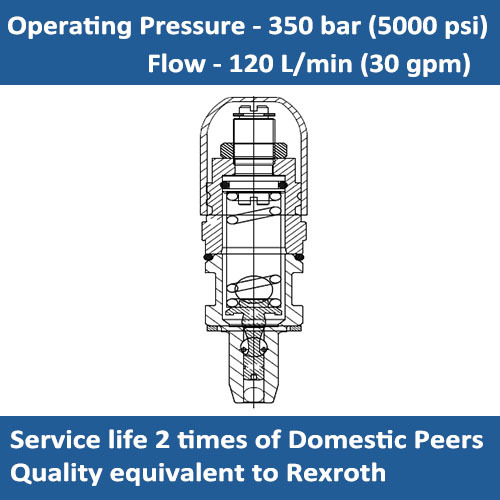

This model is based on the valve seat design with damped piston. The punched seat is used to ensure high sealing performance, and the damping piston can prevent any vibration of the valve.
OPERATION
The E-05320020 valve produces a smooth control characteristic, that is to say, even when the flow rate increases, the set opening pressure can be maintained to a large extent. This can be achieved by using the effect of hydraulic force on the valve disc, and the valve will continue to open as the flow rate increases.
FEATURES
* The damping piston is equipped with a one-way valve in front of it, which makes the response time faster.
* Compact size.
SPECIFICATIONS
Operating Pressure: P-max: 350 bar; T-max: 210 bar
Flow: 120 L/min (8 gpm)
Internal Leakage: 1cm³/min.
Temperature: - 30°C ~ +80 °C
Fluids: Mineral-based or synthetics with lubricating properties
Viscosities: 7.4 to 420 cSt (50 to 2000 sus)
Cavity: 0532002014-CK
PERFORMANCE:

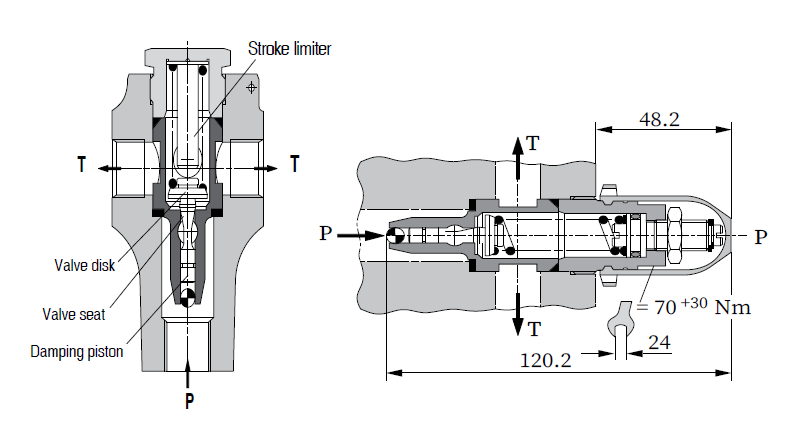

DIMENSIONS

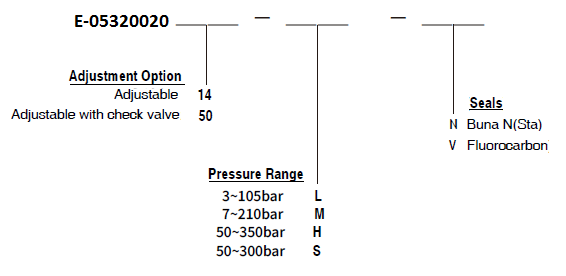

ORDER CODE:
