SYMBOL
DESCRIPTION
The valve has the function of pressure balance to realize dynamic and static control of load. In case of tubing rupture, it can prevent oil leakage and maintain load with minimum leakage.
OPERATION
The valve allows oil to flow into the actuator and locks to prevent oil from flowing backwards. The pilot auxiliary relief valve controls the motion of the actuator when the preset pressure is reached. The overflow pressure is set to be 1.3 times less than the maximum load, but the valve opening pressure is dependent on the pilot ratio setting. This product offers a variety of pilot rate options to optimize load control and different power applications.
FEATURES
* Cartridge valves are economical and suitable for simple jacks.
* Quick and easy field installation.
* Saved time.
* Can be used interchangably with pilot one-way plugs of similar size.
SPECIFICATIONS:
Rated Pressure: 350 bar (5000 psi)
Rated Flow: 30 L/min (8 US gpm)
Max total relief pressure: 350 bar (5000 psi)
Max recommended load pressure at max setting: 270 bar (3900 psi)
Pilot Ratio: 2.5:1; 5:1; 10:1
Leakage rate: 0.3 ml/min (5 drops/min)
Temperature: - 30℃ ~ + 90℃
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: A6610

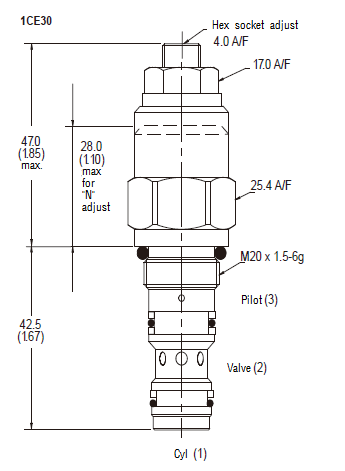

DIMENSIONS
