SYMBOL
DESCRIPTION

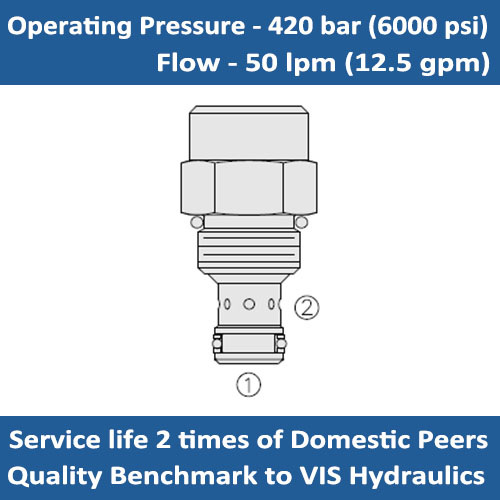

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.
OPERATION
The E-CVC0.S09 screw-in, cartridge style, direct acting, poppet type check valve, mainly used as a blocking or load-holding device. The E-CVC0.S09 valve allows from passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).
NOTE: The performance chart illustrates flow handling capacity for significant spring bias options. P/Q curves are recorded at temperature oil = 40℃ and 46 cSt.
FEATURES
* Hardened seat for long life and low leakage
* Optional bias springs for back-pressure
* Fully guided check assembly.
* Compact size.
* Fast closing and seating.
SPECIFICATIONS:
Max.Operating Pressure: 420 bar (6000 psi)
Max.Pressure Compensated Flow: 50 lpm/12.5 gpm (See Performance Chart);
Internal Leakage: 0.10 cc/minute (2 drops/minute) max.at 420 bar (6000 psi)
Temperature: - 30℃ ~ + 110℃
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation Torque: 40-45 Nm
Cavity: SAE09

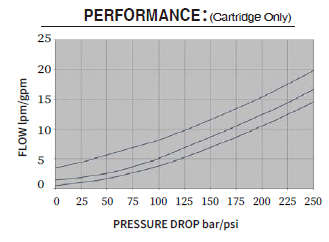

PERFORMANCE:

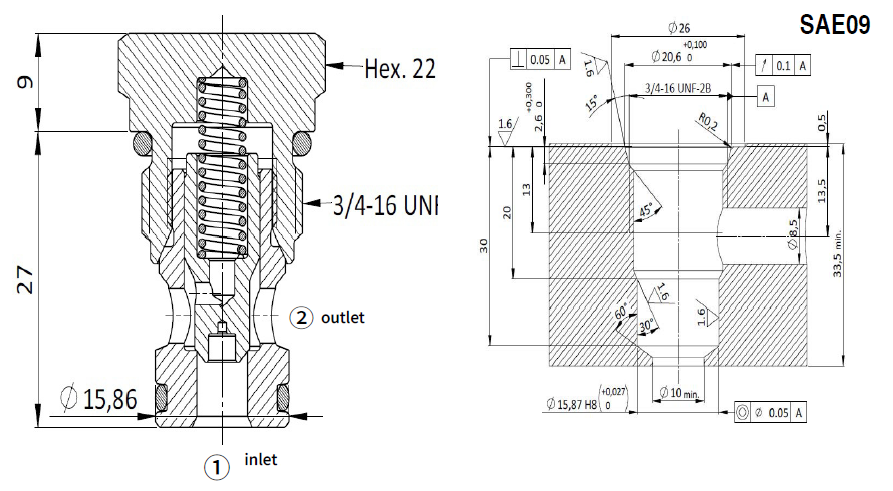

DIMENSIONS

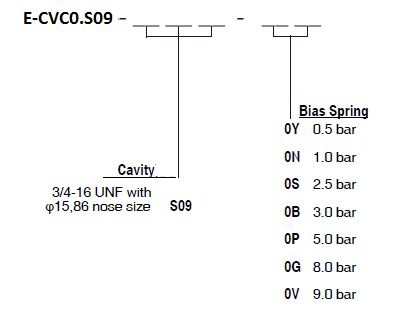

ORDER CODE:
