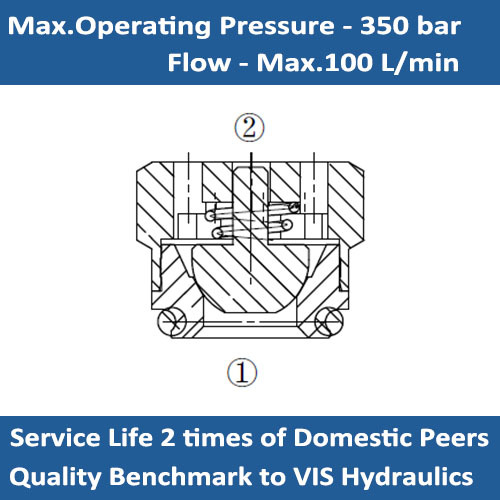

SYMBOL
DESCRIPTION
A screw-in, direct acting, poppet type in-line check valve. Mainly used as a blocking or load-holding device.
OPERATION
The E-CVD0 allows flow passage from port 1 to 2: the cartridge has a fully guided check which is spring-biased closed until sufcient pressure is applied at port 1 to open to 2. The flow is blocked in the opposite direction (2 to 1).
FEATURES
* All valve parts are made of high strength steel.
* Poppet and seat are hardened and ground to guarantee low wear and to extend service life.
* Suitable for heavy duty applications.
* Extremely compact size.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: See Performance Chart;
Internal Leakage: 0.10 cc/minute (2 drops/minute) max.at 350 bar (5000 psi)
Temperature: - 40℃ ~ + 120℃
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: see order code

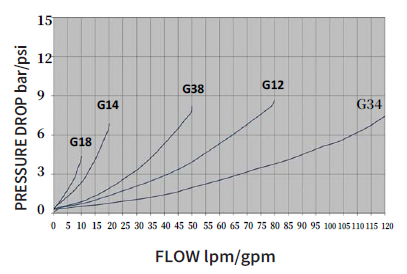

PERFORMANCE:

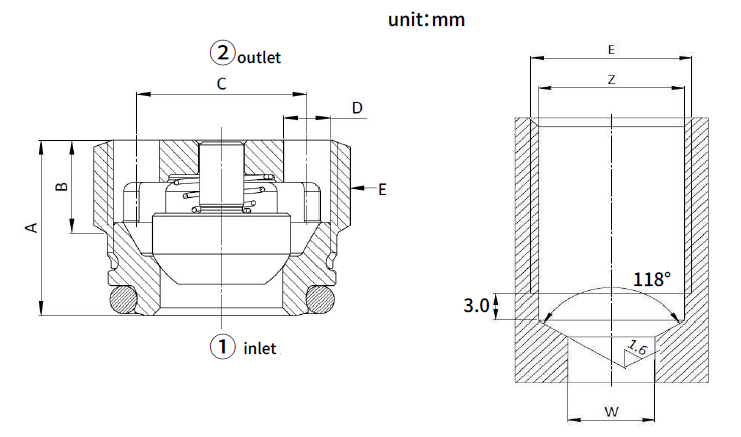

DIMENSIONS

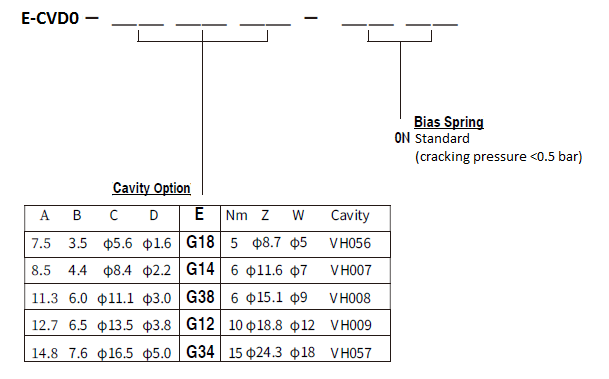

ORDER CODE:
