SYMBOL
DESCRIPTION

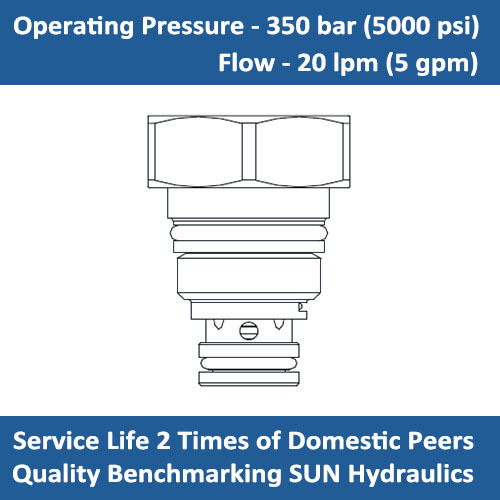

The E-CXAA is a screw-in, cartridge style, hydraulic check valve for use as a blocking or load-holding device.
OPERATION
The E-CXAA free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
FEATURES:
l Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0.07 cc/min).
l Will accept 350 bar (5000 psi) at ports 1 and 2.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (3500 psi)
Flow: 20 lpm (5 gpm)
Maximum Valve Leakage at 110 SUS (24 cSt): 0.07 ml/min (1 drops/min)
Temperature: - 40°C ~ +120°C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating properties at
Cavity: T-8A
PERFORMANCE:
DIMENSIONS:

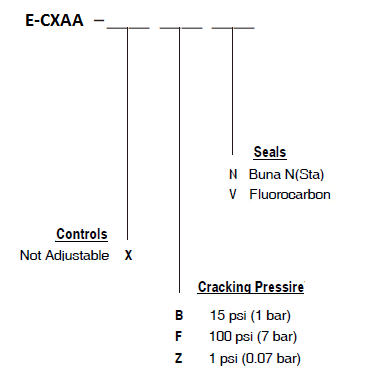

ORDER CODE:
