SYMBOL
OPERATION
Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5000 psi)
Flow: 20L/min (5 gpm)
Internal Leakage: 30 cc/min. (2 in³/min.) at 70 bar (1000 psi)
Temperature: - 30°C ~ +120 °C (with Standard Buna N seals)
Cavity: T-163A
Installation Torque: 27 - 33 Nm

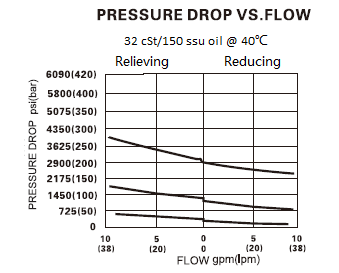

PERFORMANCE:

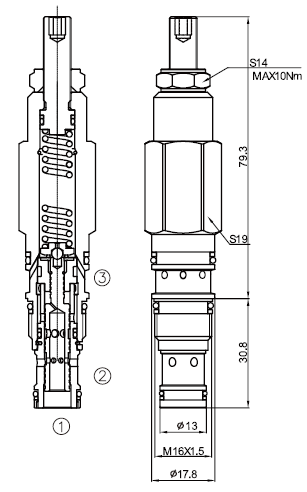

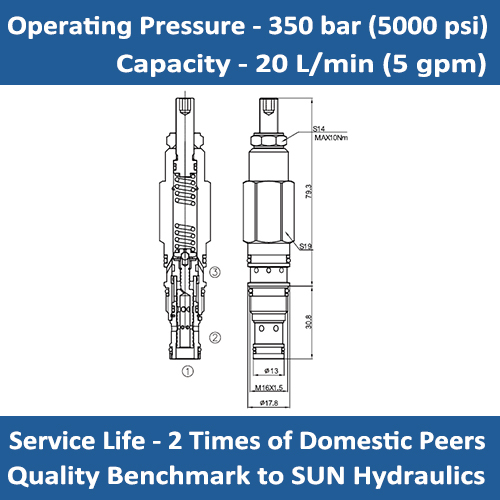

DIMENSIONS

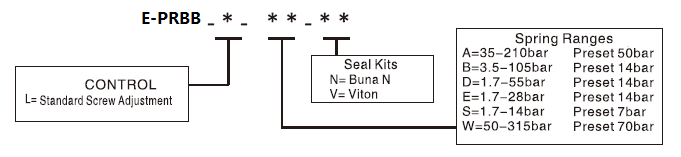

ORDER CODE:
