SYMBOL
DESCRIPTION

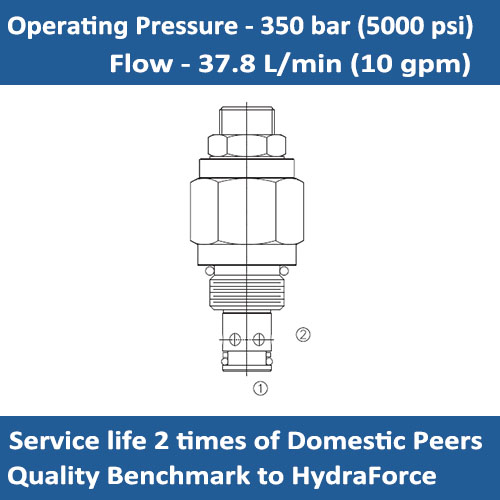

A screw in, cartridge style, pilot-operated (two-stage), spool-type hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
OPERATION
The E-PSRV2-08 prevents flow from 1 to 2 until pressure at 1 exceeds the set crack pressure and opens the pilot section. The pilot flow creates a pressure differential across the spool which causes the valve to open allowing flow from 1 to 2 protecting the circuit from over pressurization.
This cartridge relief valve offers a smooth transition in response to a load changes in a hydraulic circuit.
FEATURES
* Adjustments cannot be backed out of the valve.
* Adjustments prohibit springs from going solid.
* Hardened spool and cage for long life.
* Fast, smooth response to pressure surges.
* Industry common cavity.
SPECIFICATIONS:
Operating Pressure: 350 bar (5000 psi)
Flow: 37.8 L/min (10 gpm) see performance chart
Internal Leakage: 82ml/min. max. to 90% of nominal setting pressure
Standard Spring Ranges:
3.45 bar to 103.5 bar
3.45 bar to 207 bar
3.45 bar to 350 bar
Temperature: - 40°C ~ + 120 °C (with Standard Buna N seals)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Cavity: VC08-2

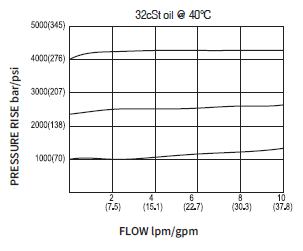

PERFORMANCE (Cartridge Only):

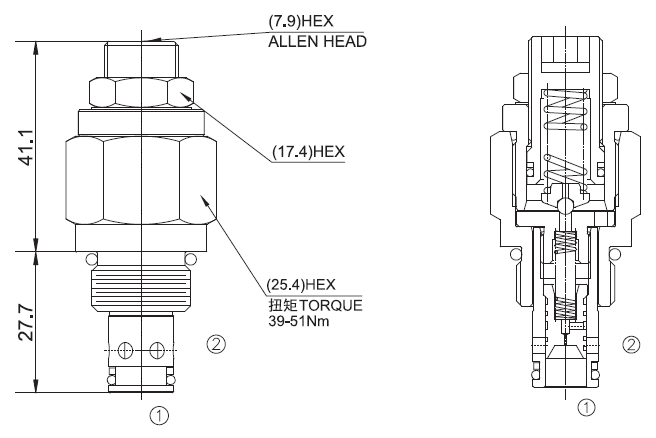

DIMENSIONS

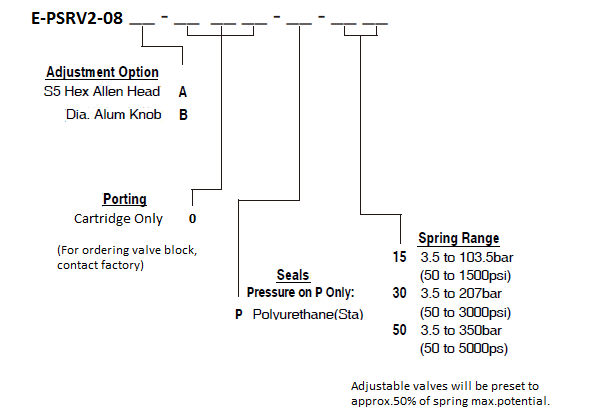

ORDER CODE:
