SYMBOL
SPECIFICATIONS:
Pressure Rating: 350 bar (5000 psi)
Flow: 40L/min (10 gpm)
Internal Leakage: 3 drops/min. max. at 350 bar (5000 psi)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals)
Cavity: VC08-2

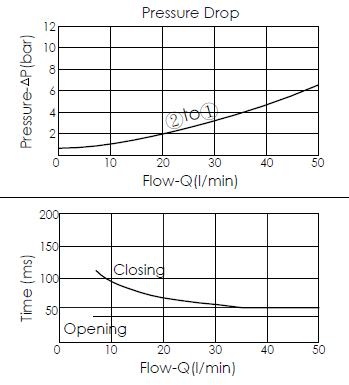

PERFORMANCE:

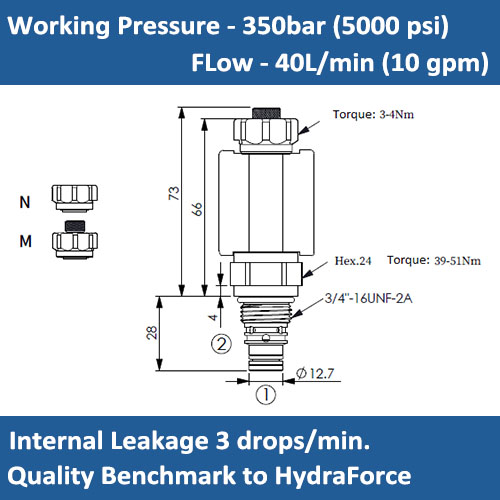

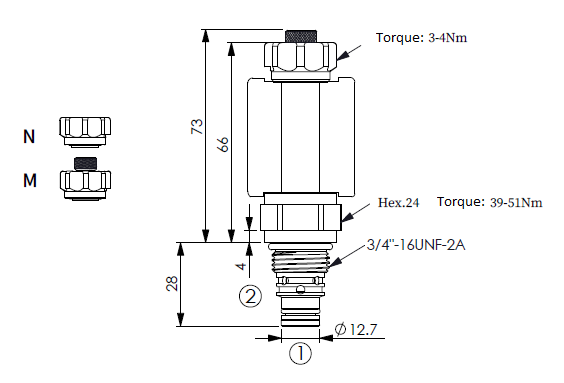

DIMENSIONS

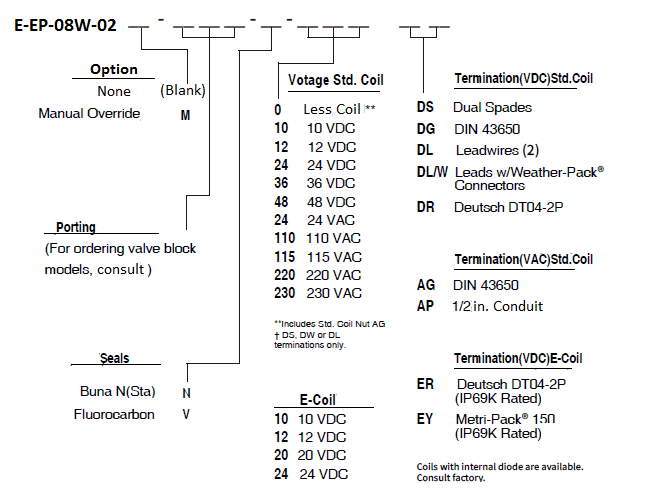

ORDER CODE:
AAK Hydraulic Valve is a top manufacturer for Solenoid Cartridge Valves in Ningbo China since 2009.
We guarantee quality for 3 years for non-standard customized valves: No leakage, No Noise, No Vibration.
Contact us to customize your valves and promote your business with our premium quality!
