SYMBOL

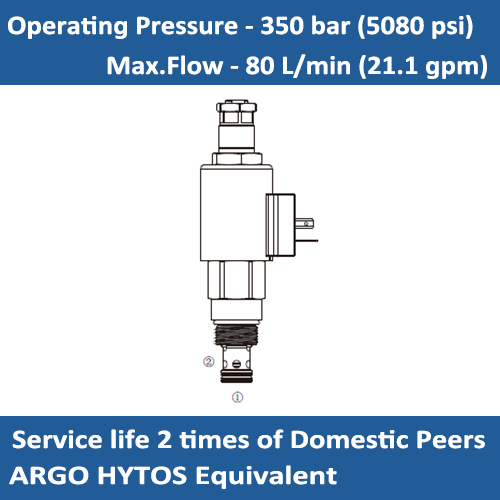

DESCRIPTION:
A screw-in cartridge relief valve, pilot operated, protects the connected circuit from pressure overloads. The input system pressure is always compared to the merchanically regulated opening pressure.
OPERATION:
The system pressure higher than set cracking pressure opens the valve and unloads the circuit by connection to the tank. Additionally, it is possible to mechanically adjust two values of cracking pressure with the help of adjusting screws built into the end plug of the solenoid actuating system.
The two set pressure values can be remotely switched by solenoid. When the solenoid is switched on the valve is set to maximum pressure. The maximum adjustable pressure is defined by pressure range of valve. The minimum circuit pressure can be set from 7 bar to the set maximum pressure. The valve can be used in two ways - as a switcher between two set pressure values or as a combined relief - unloading valve when one pressure value is adjusted on min. system pressure 7 bar.
FEATURES:
* Screw-in cartridge pilot operated pressure relief valve
* Solenoid operated remote switching between minimum and maximum set pressure
* Possible combined function of pressure relief and unloading valve
* Five pressure ranges with a maximum settable pressure of 350 bar
* Excellent stability throughout the flow range to 80 l/min
* Low hysteresis and accurate pressure control
SPECIFICATIONS:
Max. Operating Pressure: 350 bar (5080 psi)
Max.Pressure (port T): 100 bar (1450 psi)
Min.Adjustable pressure: 7 bar (102 psi)
Max. Flow: 80 L/min (21.1 gpm)
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC10-2

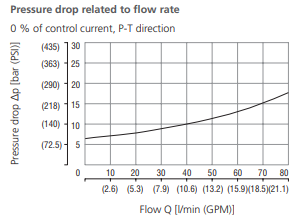

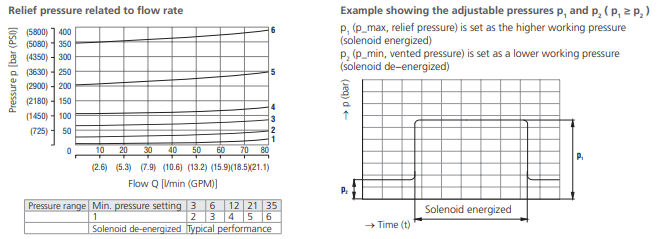

PERFORMANCE (Cartridge Only):

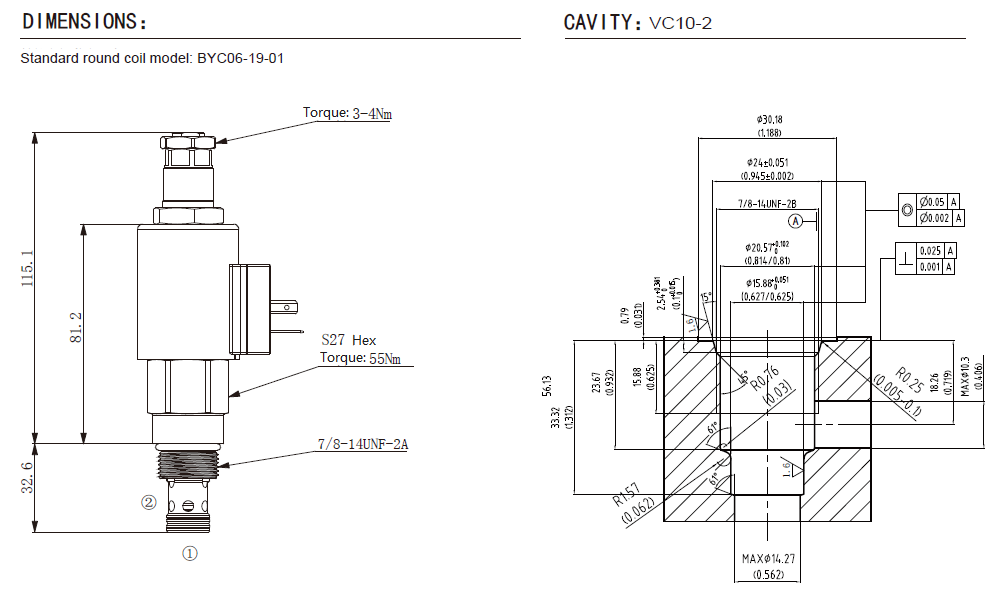

DIMENSIONS:

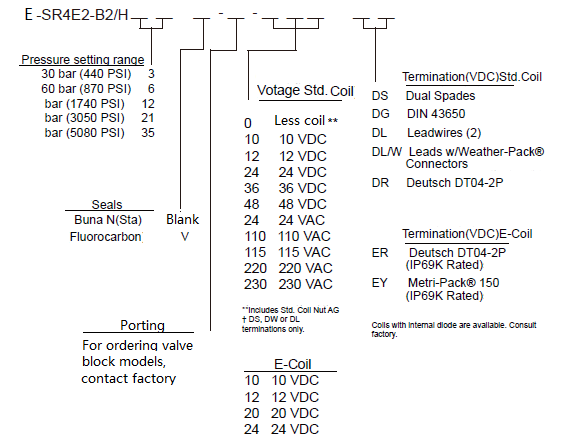

ORDER CODE:
