SYMBOL
DESCRIPTION:
A solenoid-operated, 3-way, direct-acting spool-type, screw-in hydraulic cartridge valve.
OPERATION:
When the power is off, E-WK08C-01 valve allows flow from port 1 to 2 or from port 2 to 1, while blocking the flow from port 3.
When energized, the valve allows flow from port 3 to 2 or from port 2 to 3 while blocking flow from port 1.
FEATURES:
* Galvanized and corrosion-resistant surface.
* Hardened and grounded internal valve components to ensure minimal wear and the service life is prolonged.
* Coil seal protects solenoid system.
* Various connectors available.
* High-power solenoids provide excellent switching performance.
* Low pressure drop due to optimized flow path.
SPECIFICATIONS:

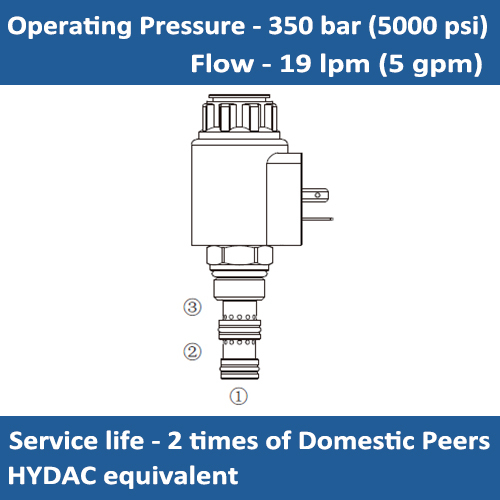

Operating Pressure: 350 bar (5000 psi)
Internal Leakage: leakage of each oil port is less than 90ml/min
Temperature: - 40°C ~ +120 °C (with Standard Buna N seals);
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus);
Cavity: VC08-3
PERFORMANCE (Cartridge Only):

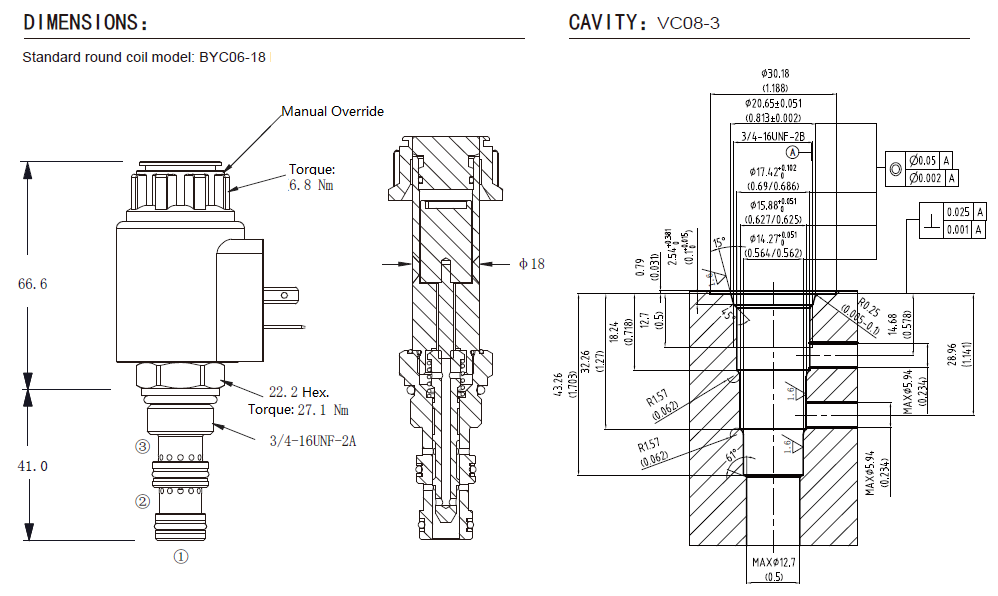

DIMENSIONS:

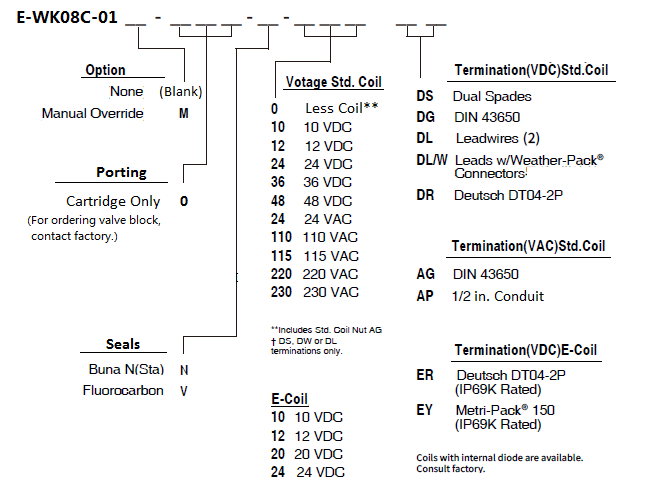

ORDER CODE:
